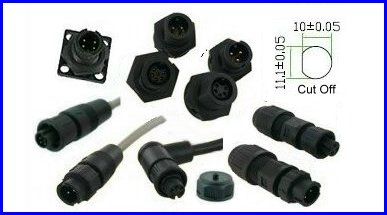

A Size Mini Series Waterproof Connectors are widely used in the medical treatment and communication area. Ideal for Outdoor Billboard / Signs / Entertainment Systems, Light Electric Vehicle, e-bike, electrical bicycle in harsh working environment.
*** Pins from 2 to 6 and panel opening dimension is only 10.0 x 11.1mm
*** Scew Thread : 7/16"- 28 UNS
*** Number of Contact : 2 ~ 6 Pin
*** Current Rating : 2A / 4P~ 6P, 5A / 2 ~ 3P
*** Installation Styles : Panel-Mounting Connectors ,Overmolded Cable Assemblies, Field-Attachable Connectors

Items per page
items
  • Certification:RoHS2002/95/EC, ISO 9001:2000
  • Made in:Taiwan
  • Model No.:CAx-series
  • Certification:RoHS2002/95/EC, ISO 9001:2000
  • Made in:Taiwan
  • Model No.:CCx-xxx
